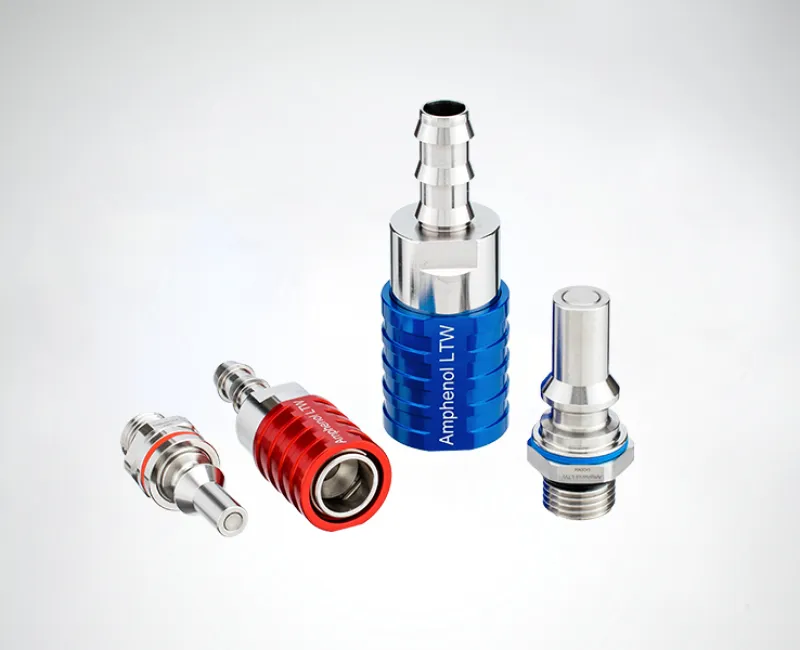

SnapQD Quick Disconnect Connectors for Liquid Cooling
Flat-face, push-to-connect liquid cooling connectors designed for server cold plates, manifolds, and rack-level cooling systems.
Why SnapQD for Liquid Cooling?
Low Fluid Loss
Flat-face valve design minimizes fluid loss during connection and disconnection.
Fast Installation
Push-to-connect design simplifies maintenance and reduces downtime.
Optimized for Flow
Multiple connector sizes support a wide range of flow requirements.
OCP UQD Compliant
Designed to meet Open Compute Project (OCP) Universal Quick Disconnect (UQD) requirements
Applications

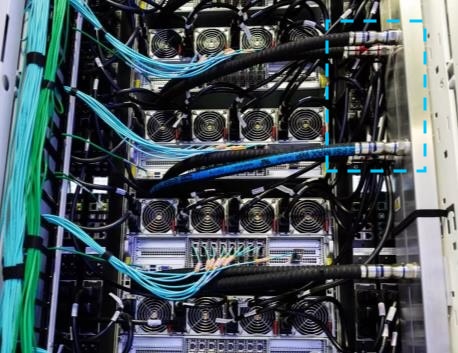

SQD08 in 4U Server Liquid Cooling Cabinet

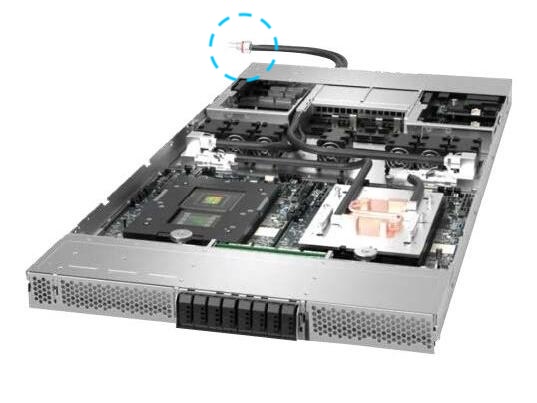

SnapQD Connector in 1U Rack
General Specifications
|
Color Coding Options |
Input: Blue / Output: Red |
|---|---|
|
Mating Style |
Push-pull hose barb / Male Thread |
|
Value Type |
Flat Face |
|
Mating Cycle |
5000 times |
|
Coolant |
PG25 (recommended) |
|
Socket Material |
Stainless Steel |
|
Operating Temperature |
-40°C ~ +120°C |
|---|---|
|
Shipping Temperature |
-40°C ~ +150°C |
|
Plug Material |
Stainless Steel |
|
Seal Material |
Ethylene-Propylene (EPDM) |
|
Maximum Operating Pressure |
290 psi, 20bar |
|
Minimum Burst Pressure |
1160 psi, 80bar |
|
Part |
Diameter (mm) |
Flow Rating (L/min) |
Fluid Loss Req (ml) |
|---|---|---|---|
|
SQD02 |
3 |
8.6 |
0.01 |
|
SQD04 |
5 |
20 |
0.012 |
|
SQD06 |
7 |
46.5 |
0.015 |
|
SQD08 |
10 |
84 |
0.019 |
Water Flow

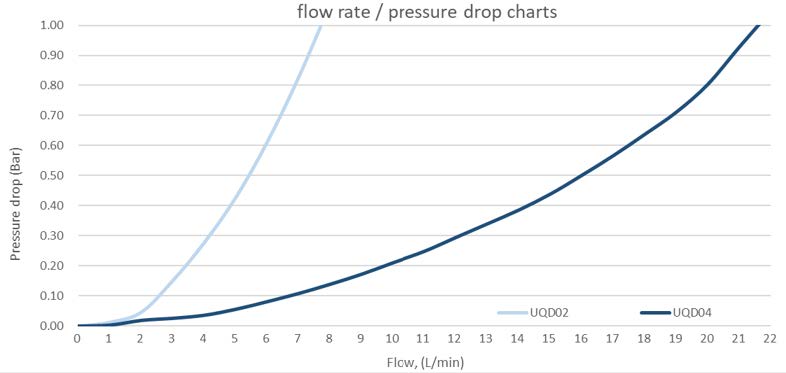

Flow Rate vs Pressure Drop for SQD02, SQD04
Flow Rate vs Pressure Drop for SQD06, SQD08
